75g plastic vertical injection machine
|
|
| Model No.︰ | - |
| Brand Name︰ | maiqi |
| Country of Origin︰ | China |
| Unit Price︰ | - |
| Minimum Order︰ | 1 pc |
|
|
|
|
|
|
|
| |
Machine Type |
Unit |
MQ-25 |
| Injection System |
Screw Diameter |
mm |
￠28 |
￠32 |
| Theoretical Injection Volume |
cm3 |
65 |
84 |
| Shot Weight |
g/Oz |
58/2.0 |
75/2.6 |
| Injection Pressure |
Kg/cm2 |
1446 |
1107 |
| Injection Rate |
cm3/s |
40.3 |
52.7 |
| Temperature Zone |
ZONE |
3 |
| Material Hopper Capacity |
L |
15 |
| Clamping Unit |
Clamping Force |
T |
25 |
| Open Force |
T |
6.6 |
| Min Mould Height |
mm |
100 |
| Open Stroke |
mm |
180 |
| Max Open Distance |
mm |
280 |
| Space Between Tie-Bar |
mm |
360X230 |
| The biggest Mould Space |
mm |
300X210 |
| Nozzle Center Height |
mm |
﹣ |
| Ejector Stroke |
mm |
40 |
| Ejector Force |
T |
1.3 |
| Hydraulic Unit |
Hydraulic Pressure |
Kg/cm2 |
140 |
| Pump Output |
L |
130 |
| Pump Motor Power |
KW |
4 |
| Heating Power |
KW |
2.7 |
| Total Wattage |
KW |
6.7 |
| other |
Machine Size |
m |
1.5X0.8X2.6 |
| Machine Weight |
T |
0.96 |
|
|
|
|

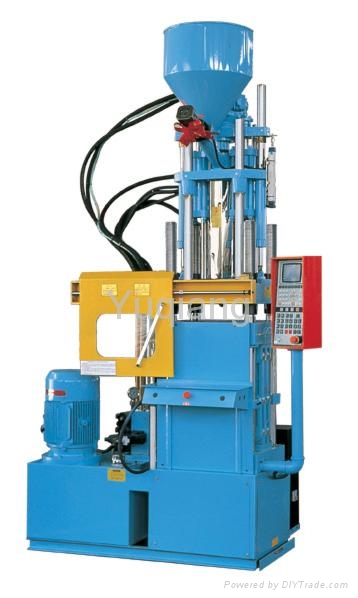

Product Image
|
|
|
